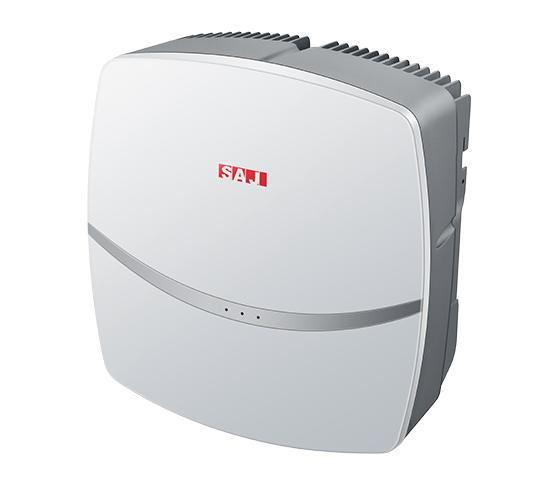

| R5-4K-S2 | |
| Input (DC) | |
| Max.PV Array Power [Wp]@STC | 6000 |
| Max. DC Voltag [V] | 600 |
| MPPT Voltage Range [V] | 90-550 |
| Nominal DC Voltage[V] | 360 |
| Start Voltage [V] | 100 |
| Min. DC Voltage [V] | 80 |
| Max. DC Input Current [A] | 12.5/12.5 |
| Number of DC Connection Sets per MPPT | 01/01 |
| DC Switch | Integrated |
| Output (AC) | |
| Rated AC Power [W] | 4000 |
| Max. AC Power [VA] 2 | 4400 |
| Rated AC Current [A]@230Vac | 17.4 |
| Max. AC Current [A] | 19.2 |
| Nominal AC Voltage/ Range [V] | 220,230,240/180-280 |
| Grid Frequency/ Range [Hz] | 50,60/45-55,55-65 |
| Power Factor [cos φ] | 0.8 leading~0.8 lagging |
| Total Harmonic Distortion [THDi] | < 2%(at nominal power) |
| Feed-in | L+N+PE |
| Efficiency | |
| Max. Efficiency | 98.0% |
| Euro Efficiency | 97.5% |
| MPPT Accuracy | >99.9% |
| Protection | |
| Internal Over-voltage Protection | Integrated |
| DC Insulation Monitoring | Integrated |
| DC Surge Protection | Integrated |
| Grid Monitoring | Integrated |
| AC Short Circuit Current Protection | Integrated |
| AC Grounding Detection | Integrated |
| GFCI Monitoring | Integrated |
| DCI Monitoring | Integrated |
| AC Surge Protection | Integrated |
| Thermal Protection | Integrated |
| Anti-island protection monitoring | Integrated |

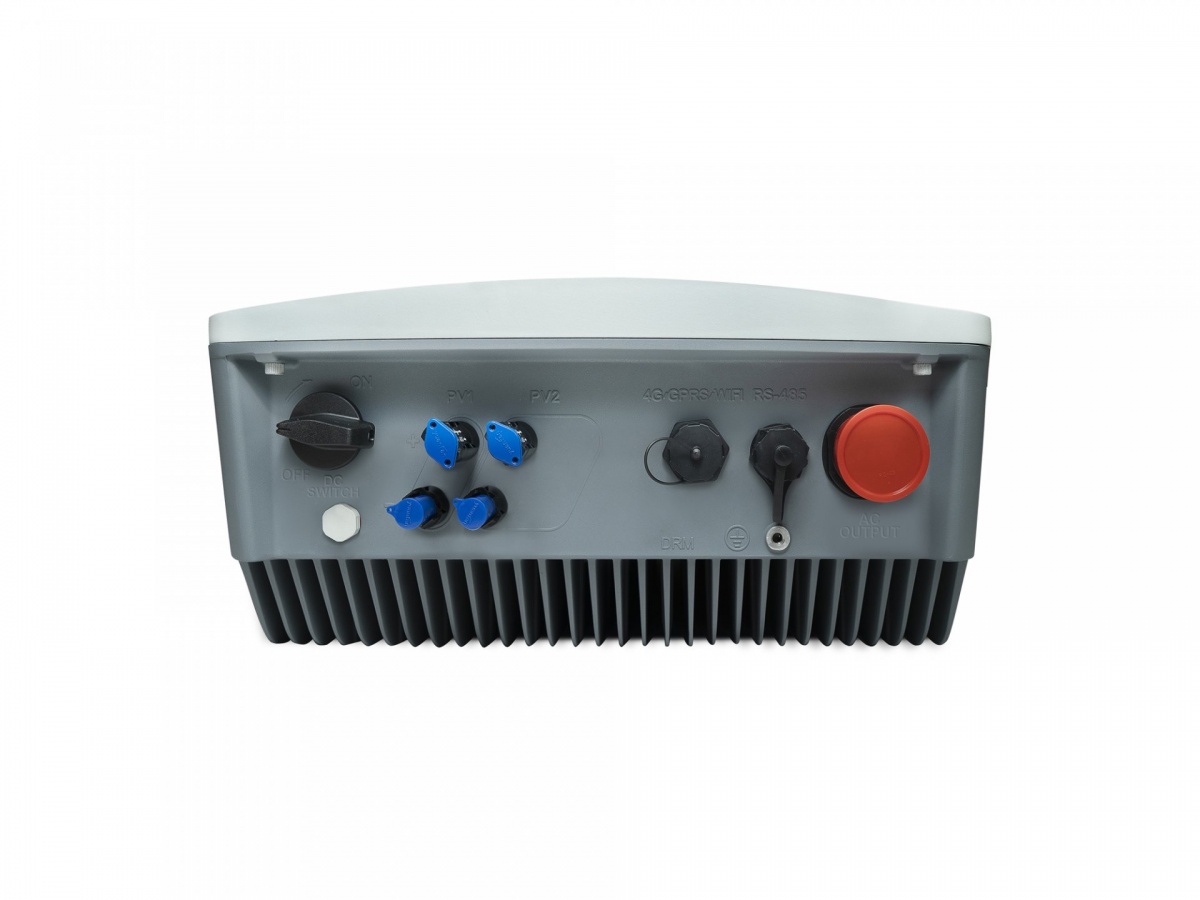

| Interface | |
| DC Connection | MC4 |
| AC Connection | Plug-in connector |
| Human Machine Interface | LED + (bluetooth/Wi-Fi+APP) |
| Communication Port | RS232(USB joints)+RS485(RJ45 crystal joints) |
| Communication Mode | Wi-Fi / GPRS / 4G(Optional) |
| General Data | |
| Topology | Transformerless |
| Consumption at Night [W] | <0.2 |
| Consumption at Standby [W] | 6 |
| Operating Temperature Range | -40°C to +60°C (running in reduced load condition when the temperature is above 45°C) |
| Cooling Method | Natural Convection |
| Ambient Humidity | 0-100% Non-condensing |
| Altitude | 4000m (>3000m power derating) |
| Noise [dBA] | <25 |
| Ingress Protection | IP65 |
| Mounting | Rear Panel |
| Dimensions [H*W*D][mm] | 389*367*143 |
| Weight [kg] | 12.2 |
| Standard Warranty [Year] | 5 (standard)/10/15/20/25 (Optional) |
| Applicable Standard | IEC62109-1/2, IEC61000-6-1/2/3/4, EN50438, C10/C11, IEC62116, IEC61727, RD1699, UNE 206006, UNE 206007, CEI 0-21, AS4777.2, CQC NB/T 32004-2013, VDE-AR-N 4105 |
